Automatic 4&6 Corner Folder Gluer automatic folder gluer machine

Cangzhou Ouguan Packing Machinery Co.,Ltd is a Corrugated paperboard production line,Flexo printer slotter die-cutter machine,Single facer machine,corrugated carton machine supplier. We provide a series of Corrugated paperboard production line,Flexo printer slotter die-cutter machine,Single facer machine,corrugated carton machine system solutions and top Corrugated paperboard production line,Flexo printer slotter die-cutter machine,Single facer machine,corrugated carton machine. Click here view more NOW.

In Stock

Send Inquiry

SKU: OG-796066

Always insist on taking the technology as the first productivity to improve our R&D strength, Cangzhou Ouguan Packing Machinery Co.,Ltd has successfully developed Automatic 4&6 Corner Folder Gluer. The accumulated rich experience and strong technological innovation capabilities have kept Cangzhou Ouguan Packing Machinery Co.,Ltd at the forefront of the market, and Automatic 4&6 Corner Folder Gluer developed have perfectly solved the pain points of the industry and the market. Research and development are the pillars on which the future of our company rests. Cangzhou Ouguan Packing Machinery Co.,Ltd will put more emphasis on improving our R&D strength in the future for developing more creative and competitive new products.

Type:	Gluing Machine	Applicable Industries:	Other
Showroom Location:	None	Video outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty of core components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:	New	Application:	Machinery & Hardware
Packaging Type:	case	Packaging Material:	Paper
Automatic Grade:	Automatic	Driven Type:	Electric
Voltage:	220V/380V/415V	Place of Origin:	Hebei, China
Brand Name:	OUGUAN	Dimension(LWH):	15000 x 1600 x 1400mm
Weight:	5500 KG	Warranty:	2 years
Key Selling Points:	Easy to Operate	After-sales Service Provided:	Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service:	Video technical support, Online support, Spare parts, Field maintenance and repair service	Local Service Location:	None
Certification:	CE/ISO

Please contact me for details, video and more information

Jessica Wu:0086 18303176662

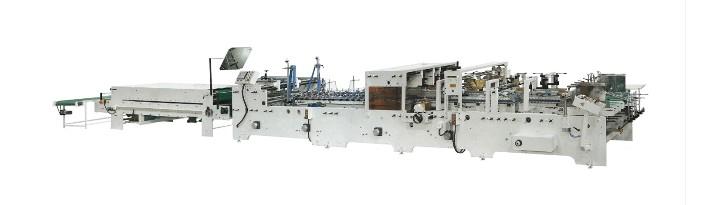

Automatic folder gluer machine for carton

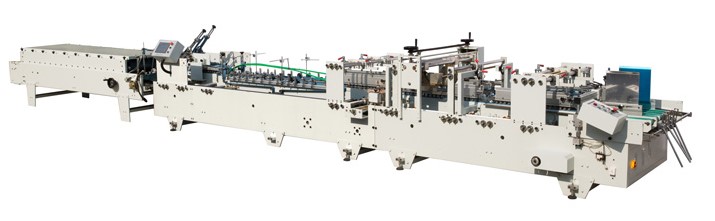

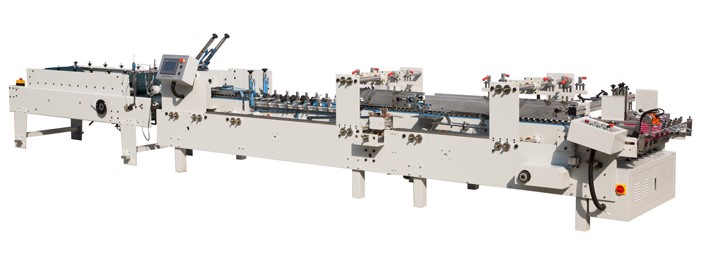

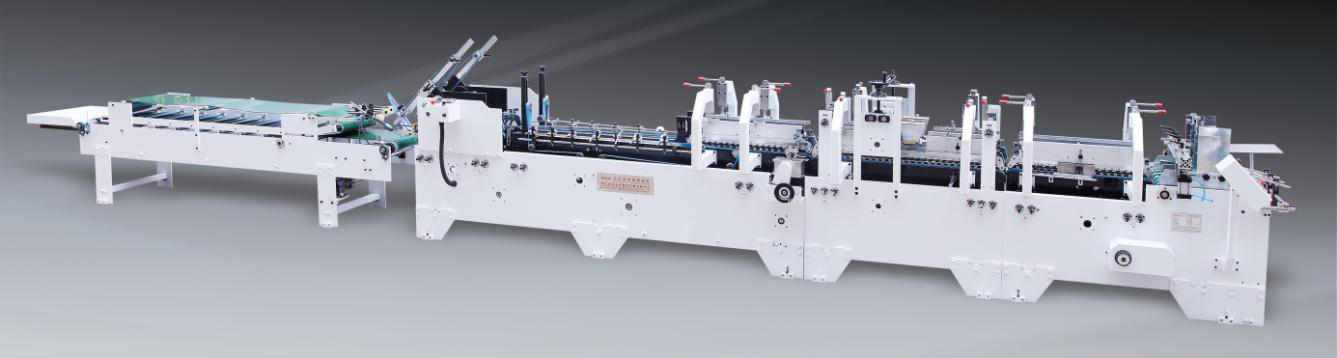

Name	SHH-FS Automatic 4 & 6 Corner Folder Gluer
Model	SHH-1050FS
Paper Material	Cardboard 200-800g E-fluteE/F-fluteF
Max. Liner speed	Max. 250 meter/minute
Feeding way	Automatically and continuously feeding
Way of folding	Fold 1 and fold 3 are 180°and 135° Fold 2 and fold 4 are 180° Bottom folded and glued 4&6 corner
Glue Material	Water-base cold glue
Electric power	11KW 380V 50HZ 3P
Weight	5500KG
Over dimension	15000 x 1600 x 1400mm
Descriptions
Folder gluer machine with 4/6 corner function,each set is controlled by independent motor,adopts electrical regulating board,PLC,imported electronic components,three plates track mode device.Aluminum plates are all chute structure,which is easy to add spare parts.The machine is especially designed for all kinds of 4/6 corner cardboard or corrugated packaging boxes,which can meet to all kinds of requirements of automatic packaging area.

Automatic 4&6 Corner Folder Gluer

Product Name	Automatic 4&6 Corner Folder Gluer automatic folder gluer machine
SKU	OG-796066
Place of Origin	Hebei, China
Brand Name	OUGUAN
Stock Status	In Stock
