Automatic folder gluer machine for carton

Specifications

HY-QZD automatic gluer consist of three part which is feeding paper part,glue folding part and counting piling part

Introduction of the machine:

HY-QZD automatic gluer consist of three part which is feeding paper part,glue folding part and counting piling part,adjust the speed by digital,micro-adjust the phase by computer,with simple quick reliable and precise controlling style,automatic feeding paper,automatic gluing and folding,automatic counting ,automatic pilling and outputting,average sticking speed is 150pcs/imn,max speed is 220pcs/imn.High efficiency,save energy,enviromental is our top pursuit

Fuction and characteristic:

Automatically finish the top folding and middle folding,meanwhile finish the glue belt stickof the upper and down part,save albor and time.

suitable range is wide,can be used in different size of carton,puicd and convenient to adjust.

The machine work steadly and reliable,the effect is firm and good looking.

Easy to operate and easy to maintain

Automatic amend the carton right-angle degree.


Main technology parameter:

1. Counting and piling part:

The finished product can be counted and speed-changing ctc.automatically,pile,neatly,exactly output.The speed can be adjusted,can be controlled seperately,the piling speed is 130m/min.

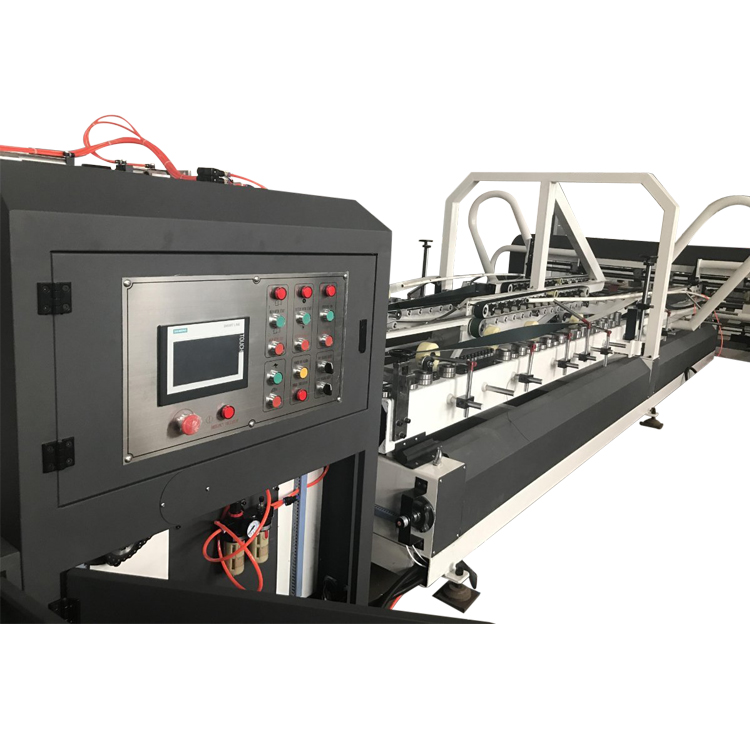

2.Control gauge part:

Input by the simple touch sreen,can change the data,production speed and data-input while the machine is running,many change frntion of the screen.(can choose to pack the PLCcomputer operation procedure)

3.Folding part

Thefirst folding sine is 180degree,the third folding line is 135 degree

4.Automatic amending part:

amending the fish tail scissors error ect,effectively
