Pizza Box Corrugated Paper 4 colors Creasing Printing Die Cutting Machine For Carton Low Price flexo printer slotter die-cutter machine
Our Pizza Box Corrugated Paper 4 colors Creasing Printing Die Cutting Machine For Carton Low Price is the perfect result of combining the perfect performance of all adopted raw materials. Thanks to that, Corrugated paperboard production line,Flexo printer slotter die-cutter machine,Single facer machine,corrugated carton machine has many great features. Also, it is designed scientifically and reasonably. Its internal structure and external appearance are meticulously designed by our professional designers and technicians. Customers' requirements and tastes can be well satisfied.
In Stock
SKU: OG-797127
Backed by our creative designers, experienced R&D experts, skilled technicians, etc. Cangzhou Ouguan Packing Machinery Co.,Ltdhas independently developed Pizza Box Corrugated Paper 4 colors Creasing Printing Die Cutting Machine For Carton Low Price. It is the result of hard work and creative efforts and will come up to the expectation of users Pizza Box Corrugated Paper 4 colors Creasing Printing Die Cutting Machine For Carton Low Price Cangzhou Ouguan Packing Machinery Co.,Ltd will strive toward excellence by building our working principles of guaranteeing quality for survival and seeking innovation for development, into everything we deliver. We are confident that we will overcome all the difficulties and obstacles to make a success in the end.
| Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Other, Advertising Company | Showroom Location: | None |
| Condition: | New | Product Type: | cardboard machine |
| Processing Type: | Printing Machine | Place of Origin: | Hebei, China |
| Brand Name: | Ouguan | Voltage: | 380V/220V |
| Dimension(L*W*H): | Depend on model | Weight: | Depend model on |
| Warranty: | 1 Year | Production Capacity: | 100-150 pcs/min |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Marketing Type: | New Product 2020 | Warranty of core components: | 1 Year |
| Core Components: | PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox | Name: | Pizza Box 4 colors Creasing Printing Die Cutting Machine |
| Color: | Customer's Requirements | Suitable for: | Cardboard |
| Control: | PLC+Touch Screen | Key Selling Points: | Auto |
| Speed: | 150 pcs/min | Function: | Printing Carton |
| Type: | Automatic | Keyword: | Ink Printing Die-Cutting Machine |
| Certification: | CE, CE ISO | After Warranty Service: | Video technical support, Online support, Spare parts, Field maintenance and repair service |
| Local Service Location: | None | After-sales Service Provided: | Video technical support |
Product Description

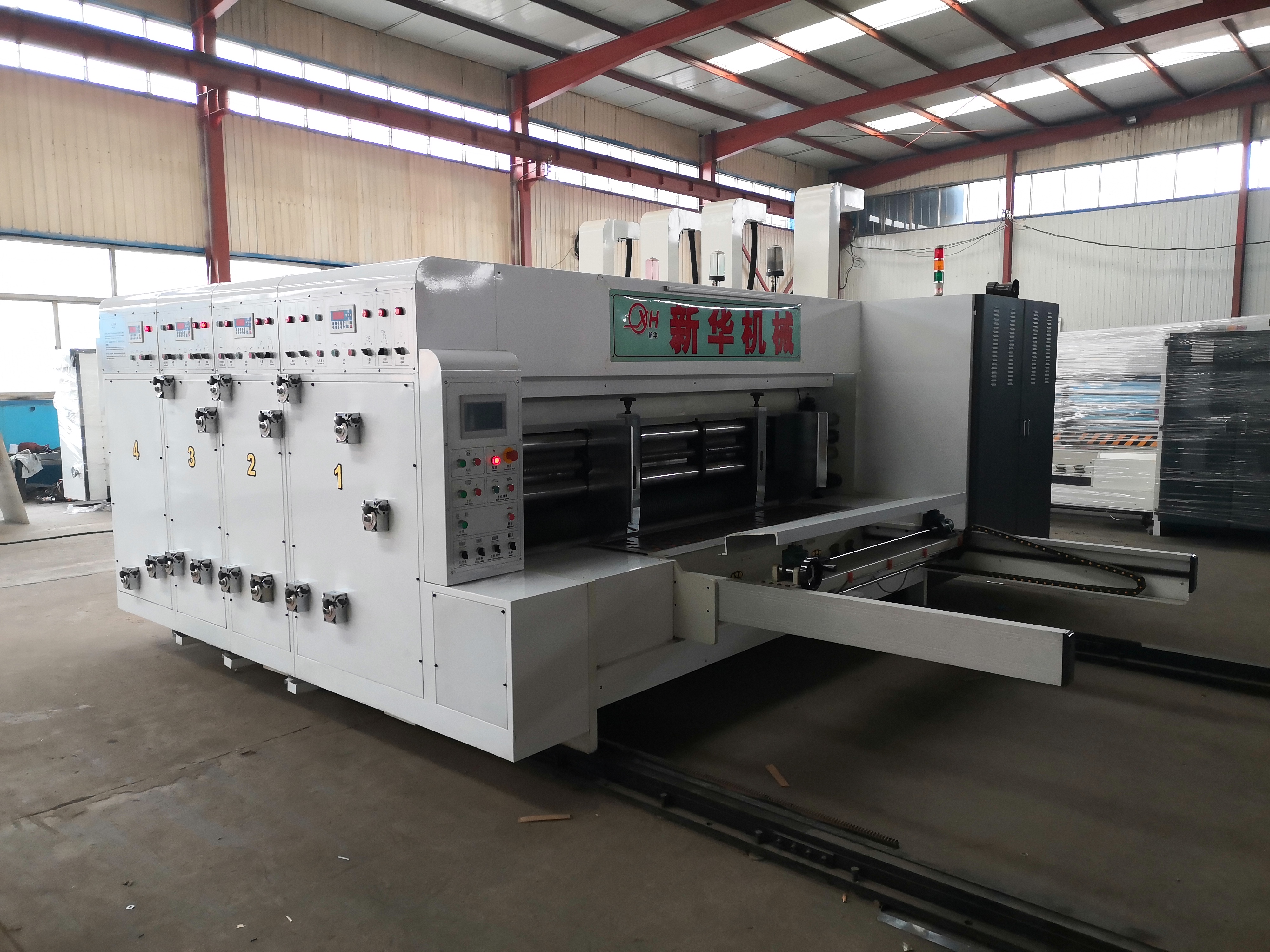

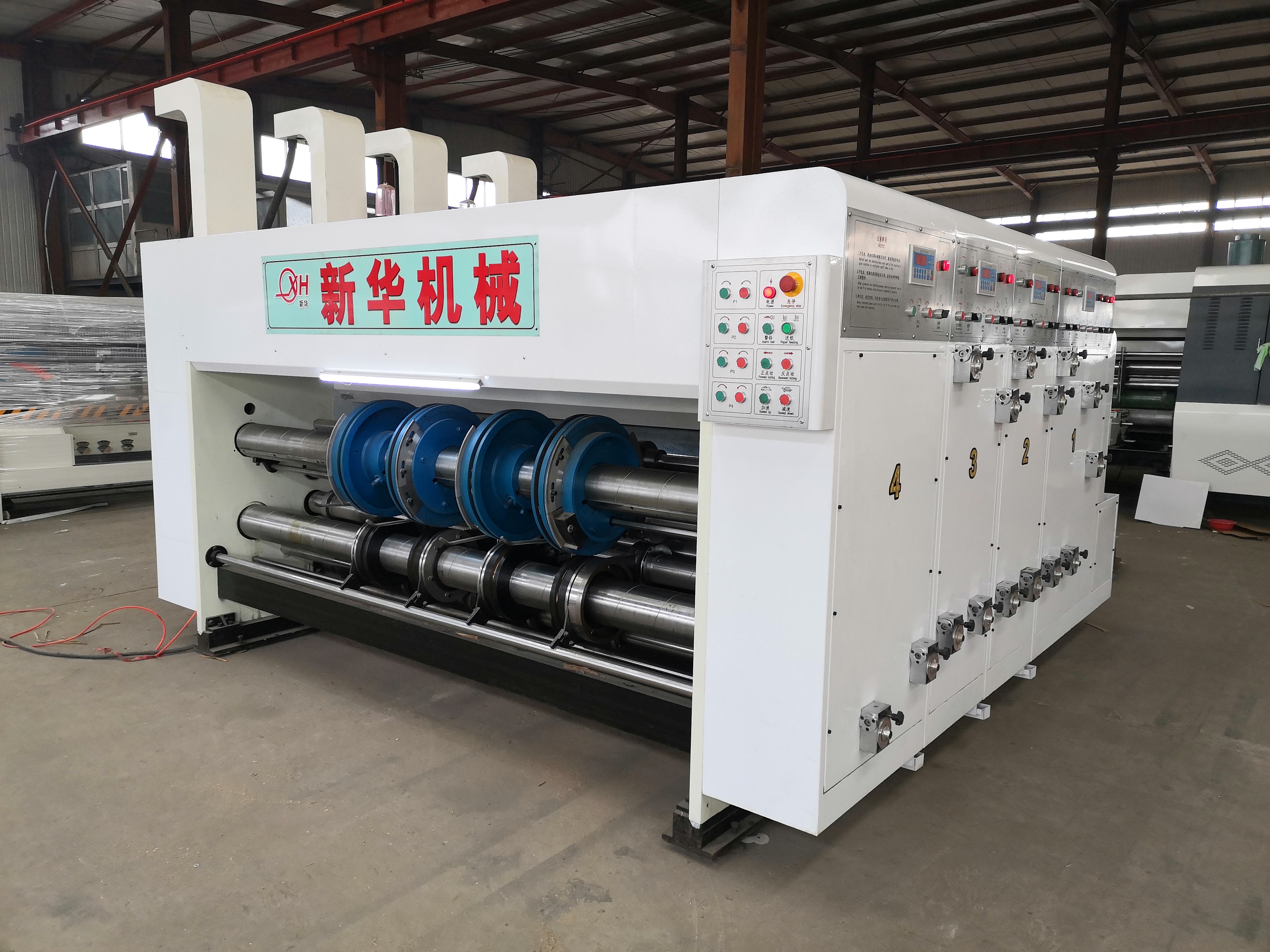

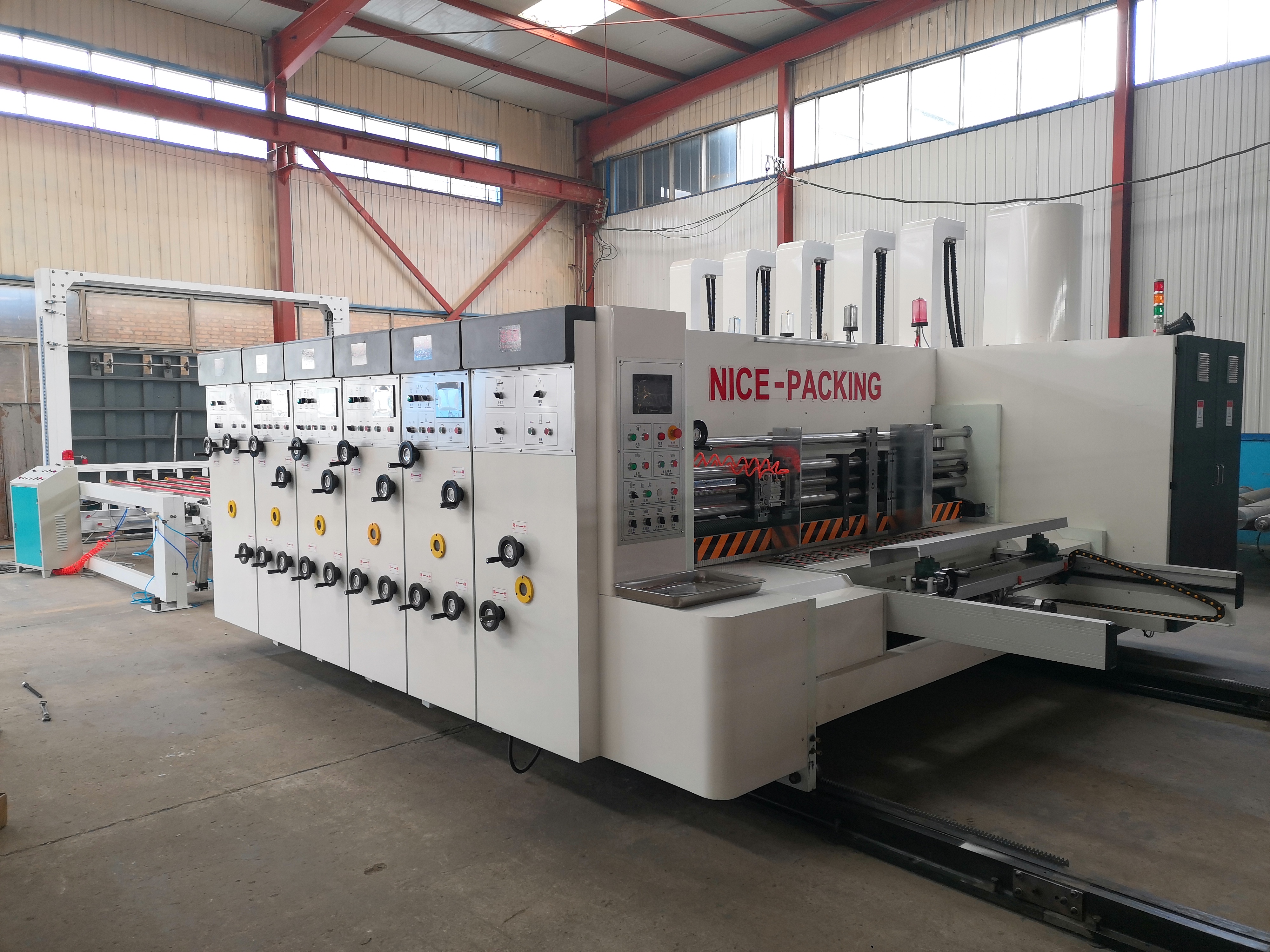

Pizza Box Corrugated Paper 4 colors Creasing Printing Die Cutting Machine For Carton
The whole machine is adopted international famous brand appliances "Schneider" .The quality is stable and reliable.
The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.
The engine drive gear is adopted 40Cr, the shaving machining nitrogen treatment, tinted with high precision.
Machine transmission parts (shaft, gear joint) is adopted free key connection (LOCK -ALX),clears the connection gap.lt is suitable for long-term high speed running with high torque.
The machine drive bearing ,important driving parts adopt three big domestic famous brand:Hava los,simple maintenance,long service life.
The engine lubrication system is adopted automatic spray type lubrication, equipped with auto oil level balance system.
It adopts Working gap adjustment, self-locking type worm wheel and worm gear device , quick performance and convenient adjustment.
The main motor is adopted frequency conversion control.Ilt makes start, running more steadily and saves more energy.
Rotary die-cutting department and rotary slotting department is optional for you.
Option : ceramic anilox roller stacking.
| Color group | to be configured according to user's needs | ||
| Width of machine inside | 2600mm | 2800mm | 3000mm |
| Max. paper size | 1200×2400mm | 1400×2600mm | 1600×2800mm |
| Max. printing size | 1200×2300mm | 1400×2500mm | 1600×2700mm |
| Skip feeding paper | 1400×2400mm | 1600×2600mm | 1800×2800mm |
| Printing plate thickness | 7.2mm | 7.2mm | 7.2mm |
| Max. die cutting size | 1200×2300mm | 1400×2500mm | 1600×2700mm |
Packaging & Shipping
Our Services
Company Information
Related Products
| Product Name | Pizza Box Corrugated Paper 4 colors Creasing Printing Die Cutting Machine For Carton Low Price flexo printer slotter die-cutter machine |
|---|---|
| SKU | OG-797127 |
| Place of Origin | Hebei, China |
| Brand Name | OUGUAN |
| Stock Status | In Stock |
Cangzhou Ouguan Packaging Machinery Co., Ltd. is a professional manufacturer of corrugated carton box making machines with over 20 years of experience. We provide one-stop solutions including 2/3/5/7 ply corrugated paperboard production lines, flexo printer slotter die-cutters, folder gluers, and more.
