corrugated cardboard carton box making machine price printing slotting with die cutting machine flexo printer slotter die-cutter machine

Since inception, we have been constantly upgrading the manufacturing technologies.Thanks to those technologies, product performance has also improved a lot. It has a wide application and now can be found in the field(s) of Paper Product Making Machinery.

In Stock

Send Inquiry

SKU: OG-796481

The product is made by technologies, some of which are developed on our own while others are learned from other famous brands.In the fields like Paper Product Making Machinery, our product is widely used for its versatility and guaranteed quality. We can provide you with the highest quality products within your budget. Our goal is to exceed the quality expectations of our customers. This commitment starts with the top-level management and extends through the entire enterprise. This can be achieved through innovation, technical excellence, and continuous improvement. In this way, Cangzhou Ouguan Packing Machinery Co.,Ltd firmly believe that we will satisfy the growing needs of every customer.

Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Other, Advertising Company	Showroom Location:	None
Condition:	New	Product Type:	cardboard machine
Processing Type:	Printing Machine	Place of Origin:	Hebei, China
Brand Name:	Ouguan	Voltage:	380V/220V
Dimension(LWH):	Depend on model	Weight:	65000 kg
Warranty:	1 Year	Production Capacity:	100-150 pcs/min
Machinery Test Report:	Provided	Video outgoing-inspection:	Provided
Marketing Type:	New Product 2020	Warranty of core components:	1 Year
Core Components:	PLC, Pressure vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox	Name:	Printing Die Cutting slotting Machine
Color:	Customer's Requirements	Suitable for:	Cardboard
Control:	PLC+Touch Screen	Key Selling Points:	Auto
Speed:	150 pcs/min	Function:	Printing Carton
Type:	Automatic	Keyword:	Ink Printing Die-Cutting Machine
Certification:	CE

Product Description

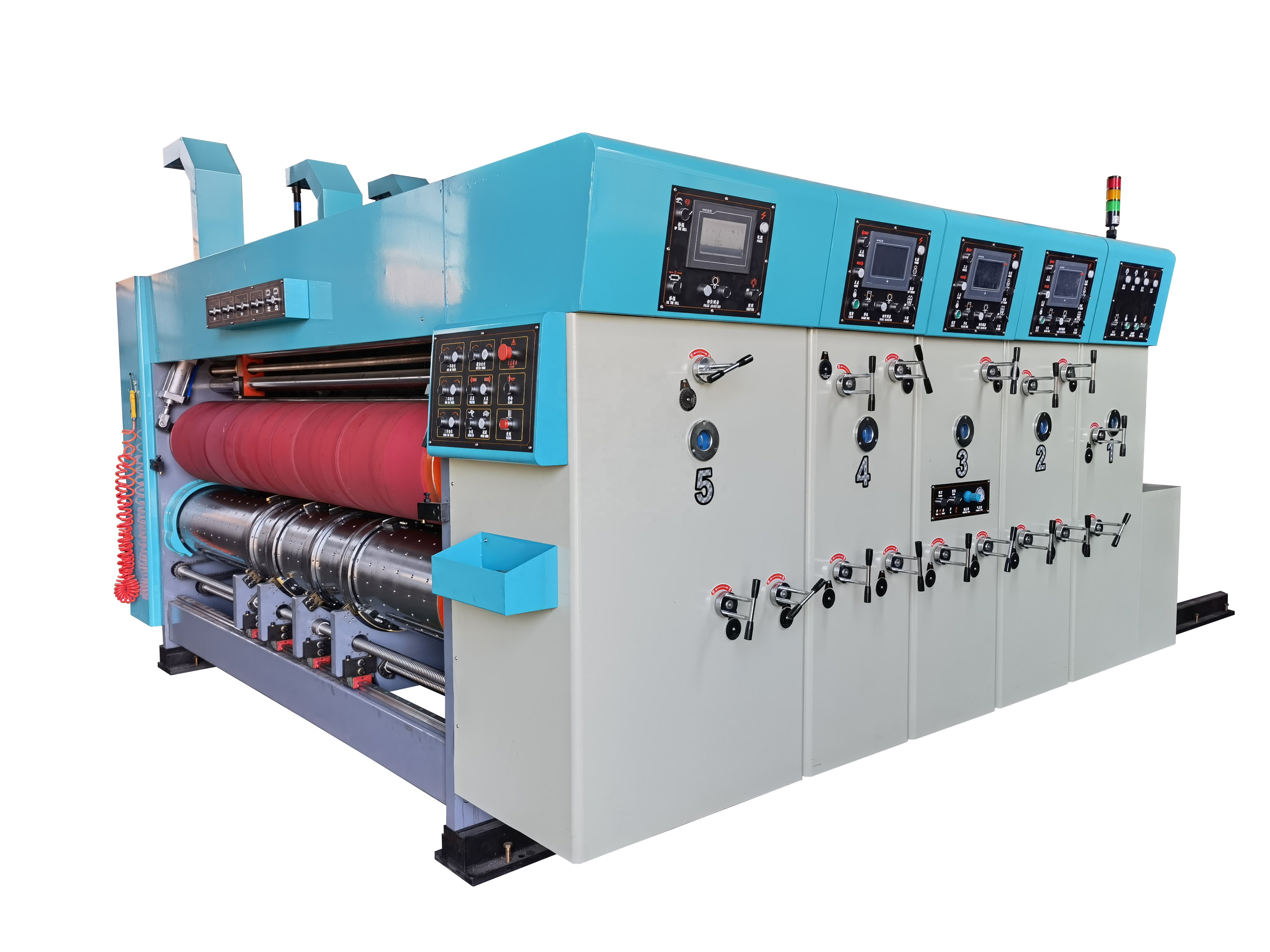

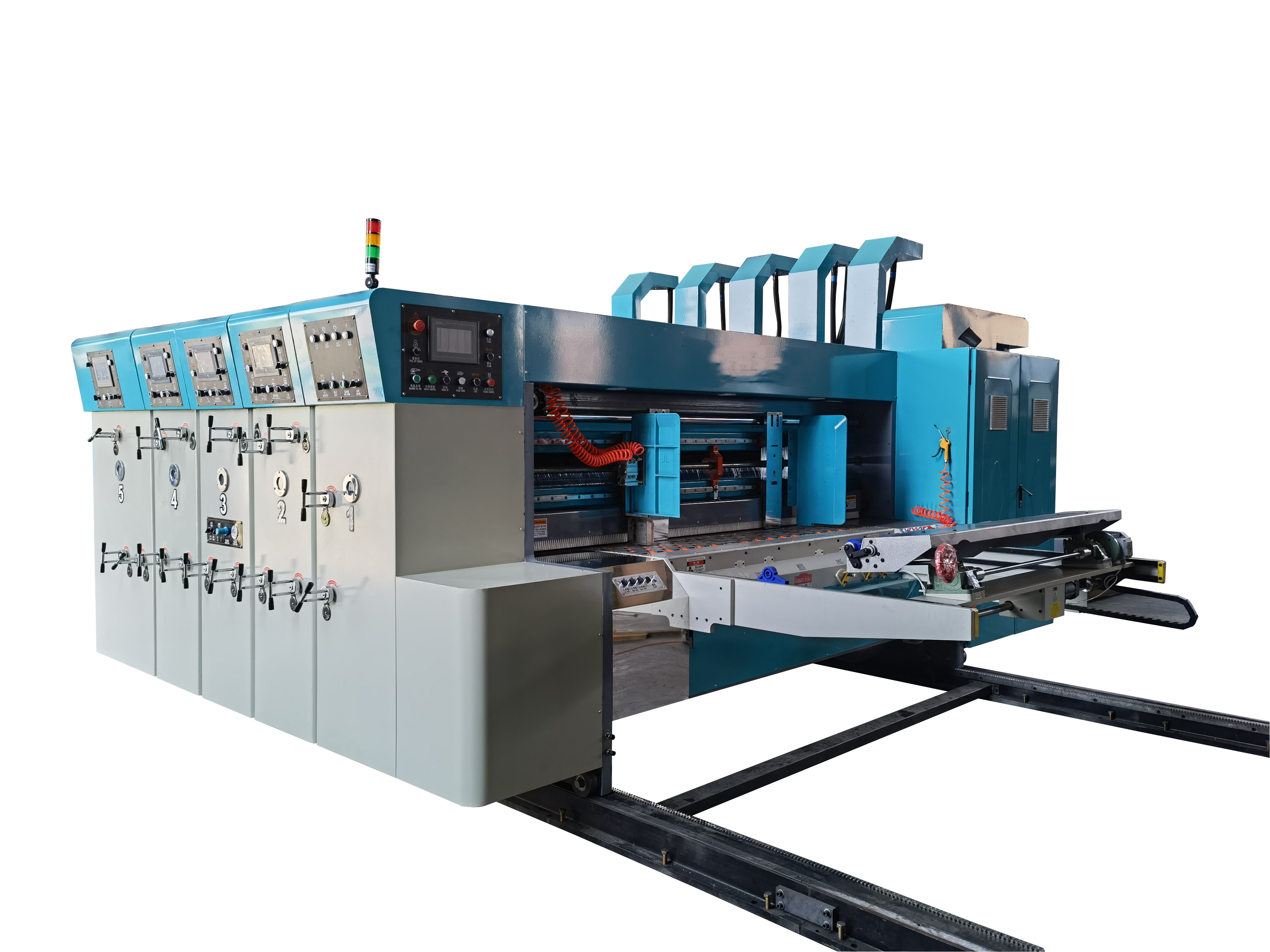

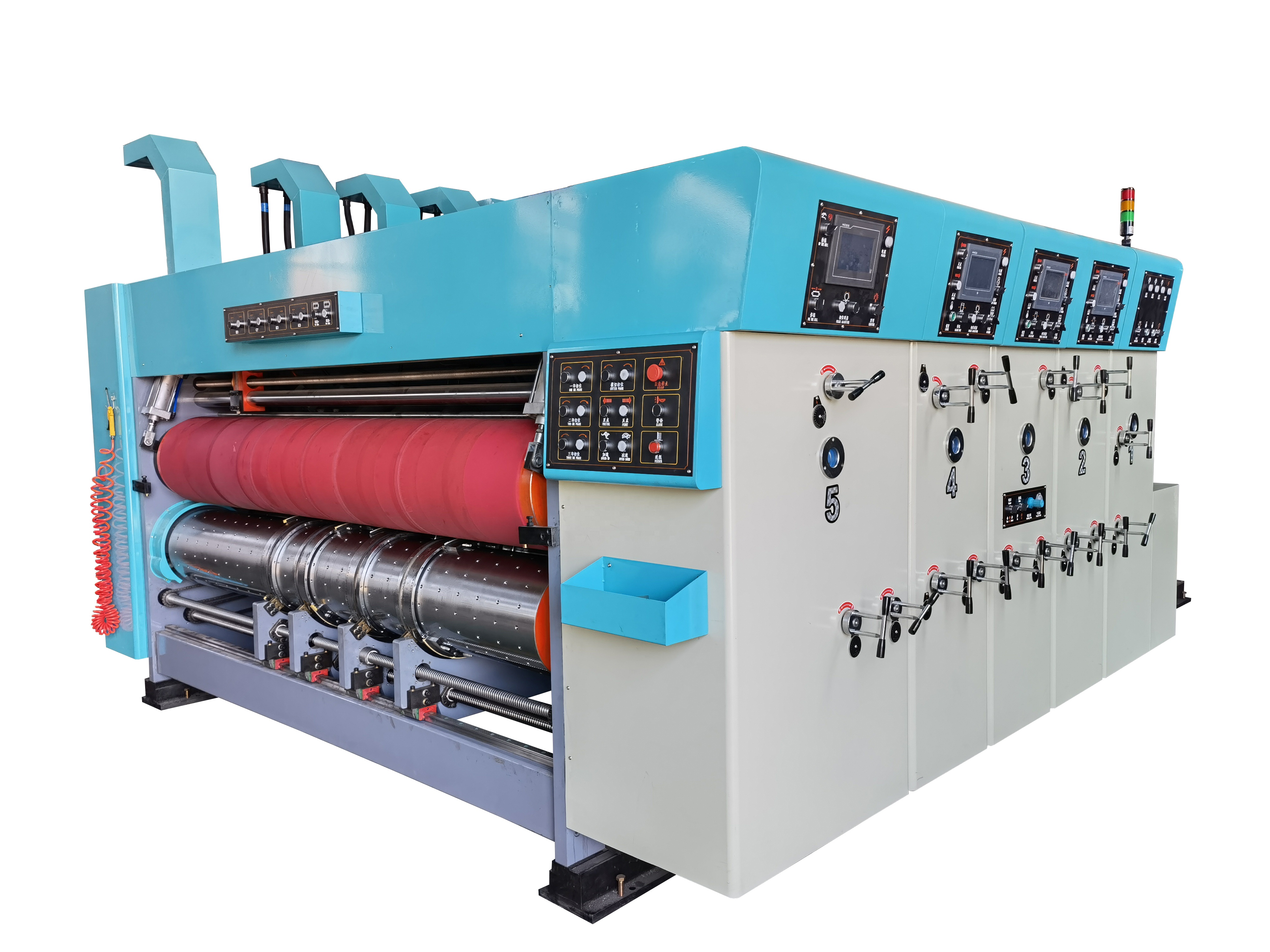

Pizza Box Corrugated Paper 4 colors Creasing Printing Die Cutting Machine For Carton

corrugated cardboard carton box making machine price printing slotting with die cutting machine

The whole machine is adopted international famous brand appliances "Schneider" .The quality is stable and reliable.

The machine shaft, roller are adopted high quality steel, grinding processing, high precision computer dynamic balancing correction and surface hard chromium plating.

The engine drive gear is adopted 40Cr, the shaving machining nitrogen treatment, tinted with high precision.

Machine transmission parts (shaft, gear joint) is adopted free key connection (LOCK -ALX),clears the connection gap.lt is suitable for long-term high speed running with high torque.

The machine drive bearing ,important driving parts adopt three big domestic famous brand:Hava los,simple maintenance,long service life.

The engine lubrication system is adopted automatic spray type lubrication, equipped with auto oil level balance system.

It adopts Working gap adjustment, self-locking type worm wheel and worm gear device , quick performance and convenient adjustment.

The main motor is adopted frequency conversion control.Ilt makes start, running more steadily and saves more energy.

Rotary die-cutting department and rotary slotting department is optional for you.

Option : ceramic anilox roller stacking.

Color group	to be configured according to user's needs
Width of machine inside	2600mm	2800mm	3000mm
Max. paper size	1200×2400mm	1400×2600mm	1600×2800mm
Max. printing size	1200×2300mm	1400×2500mm	1600×2700mm
Skip feeding paper	1400×2400mm	1600×2600mm	1800×2800mm
Printing plate thickness	7.2mm	7.2mm	7.2mm
Max. die cutting size	1200×2300mm	1400×2500mm	1600×2700mm
