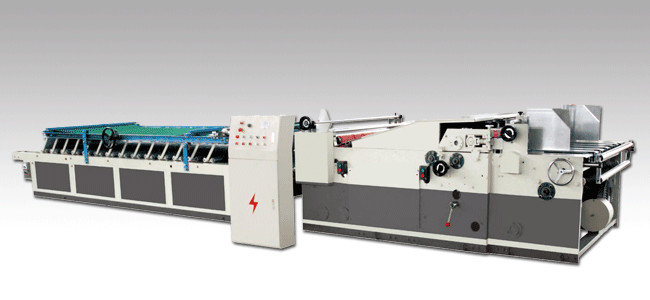

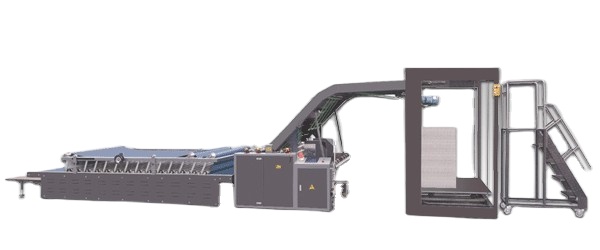

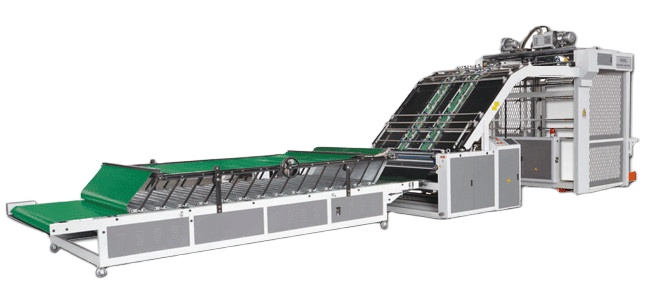

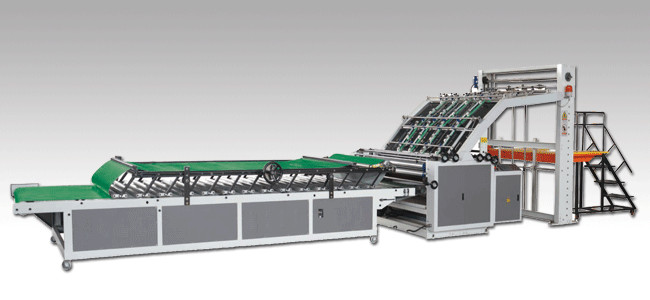

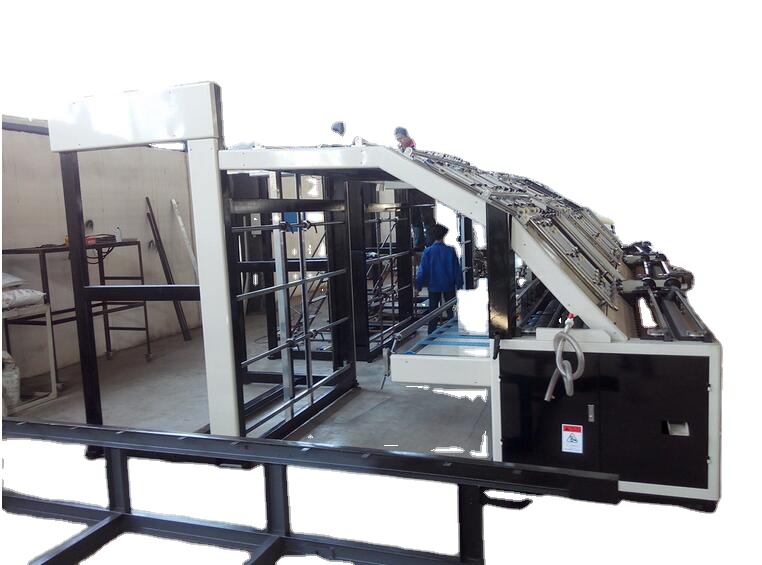

Automatic 1300 /1450/1600 model flute machine corrugated cardboard lamination machine Flute laminator machine

High-level technologies are adopted to manufacture the product now. It is those technologies that contributes to the manufacturing of high-quality and multi-functional Automatic 1300 /1450/1600 model flute machine corrugated cardboard lamination machine.In the application field(s) of Packaging Line , the product is commonly seen and widely used.
In Stock
Send Inquiry
SKU: OG-796105

Cangzhou Ouguan Packing Machinery Co.,Ltd In-depth analysis of the actual needs of target customers, combined with its own advantages resources, successfully developed Automatic 1300 /1450/1600 model flute machine corrugated cardboard lamination machine. High-end technologies are used to manufacture Automatic 1300 /1450/1600 model flute machine corrugated cardboard lamination machine.The product can play out its greatest effect in the field(s) of Packaging Line. Our expertise and technologies enable tailor-made solutions for every customer.

Type:Packaging Line, AutomticApplicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:United Kingdom, Brazil, Peru, Indonesia, India, Mexico, Thailand, Chile, Bangladesh, South Africa, Kazakhstan, Ukraine, UzbekistanCondition:New
Application:Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco, Packing IndustryPackaging Type:Film
Packaging Material:Plastic, WoodAutomatic Grade:Automatic
Driven Type:ElectricPlace of Origin:hebei
Brand Name:OuguanDimension(L*W*H):depends one machine
Weight:2000 KGWarranty:1 Year, 12 Months
Key Selling Points:Easy to OperateMarketing Type:New Product 2021
Machinery Test Report:ProvidedVideo outgoing-inspection:Provided
Warranty of core components:1 YearCore Components:Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox
Name:flute machine corrugated cardboard lamination machineColor:Customer's Requirements
Suitable for:cardboardControl:PLC+Touch Screen
Speed:800-1000 Pcs/minFinished Products:corrugated cardboard
Certification:CE

Product Description

                  flute machine corrugated cardboard lamination machine



Automatic 1300 /1450/1600 model flute machine corrugated cardboard lamination machine

Model   BZD1300 BZD1450 BZD1600
Max Sheet size mm 1300×1100 1450×1100 1600×1100
Min Sheet size  mm 350×450 350×450 350×450
Speed m/min 50 50 50
Total electric consumption kw 6.4 6.4 6.4
Overall Dimensions mm 8800×1980×1250 8800×2130×1250 8800×2280×1250
Total weight T 4.5 4.8 5



BZJ-D series semi-automatic flute laminating machine is the latest development model based on our company's A series semi-automatic laminating machine. The difference between the two is the paper feeding method of the corrugated paper. The BZJ-A series is a manual continuous paper feeding, and then the rubberizing process is completed after pushing the claws, while the BZJ-D model is manually placed on the paper feeding table. A stack of paper consisting of several corrugated papers is placed thereon, and then automatically fed into the rubberized roller by the adsorption of the vacuum blower. This model reduces the labor intensity of the paper feeding staff and improves the efficiency of the paper machine.
