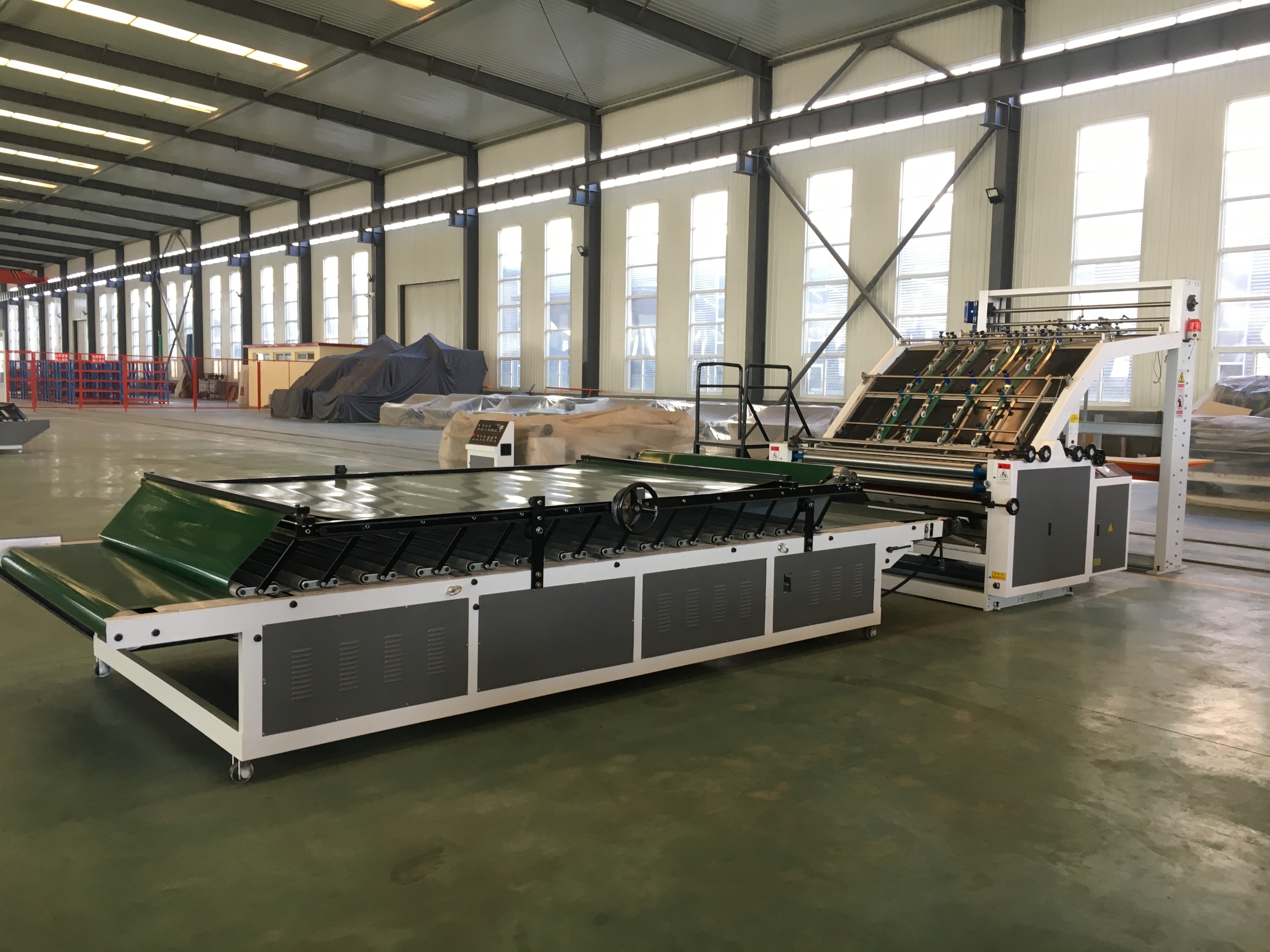

Semi automatic Flute Laminating Machine semi-auto flute laminator machine

Thanks to the efforts of Cangzhou Ouguan Packing Machinery Co.,Ltd's employees, our development work has been carried out smoothly and efficiently. Our Semi automatic Flute Laminating Machine is developed to lead the industry trend with its new features and unique appearance. The Laminating Machines product will supply to all over the world, such as Europe, America, Australia,Uganda , Oman ,Sri Lanka , Surabaya . In order to be able to successfully meet the challenges,Cangzhou Ouguan Packing Machinery Co.,Ltd will continue to forge ahead on the road of technological innovation. In addition, it will also work hard to analyze the changing needs of the market and create better products for customers according to their needs.

Pls Contact me to get video, quotation and more onformation

 https://imgbd.weyesimg.com/prod/moving/img/a548ffe85ca0d55e06c50144ce8e9912/729d4198cfc806dfe55074514310da09.jpg" alt="Semi automatic Flute Laminating Machine" width="800" ori-width="4032" ori-height="3024" />

Introduction:

HRBTMJ-H-II type servo machine is based on HRBTMJ-H-I, improved the automatic up and down surface paper system. Surface paper can pile up the height of 1m once time, useing photoelectric automatic up. So this design reduced more time for moving the surface paper.

Main feature:

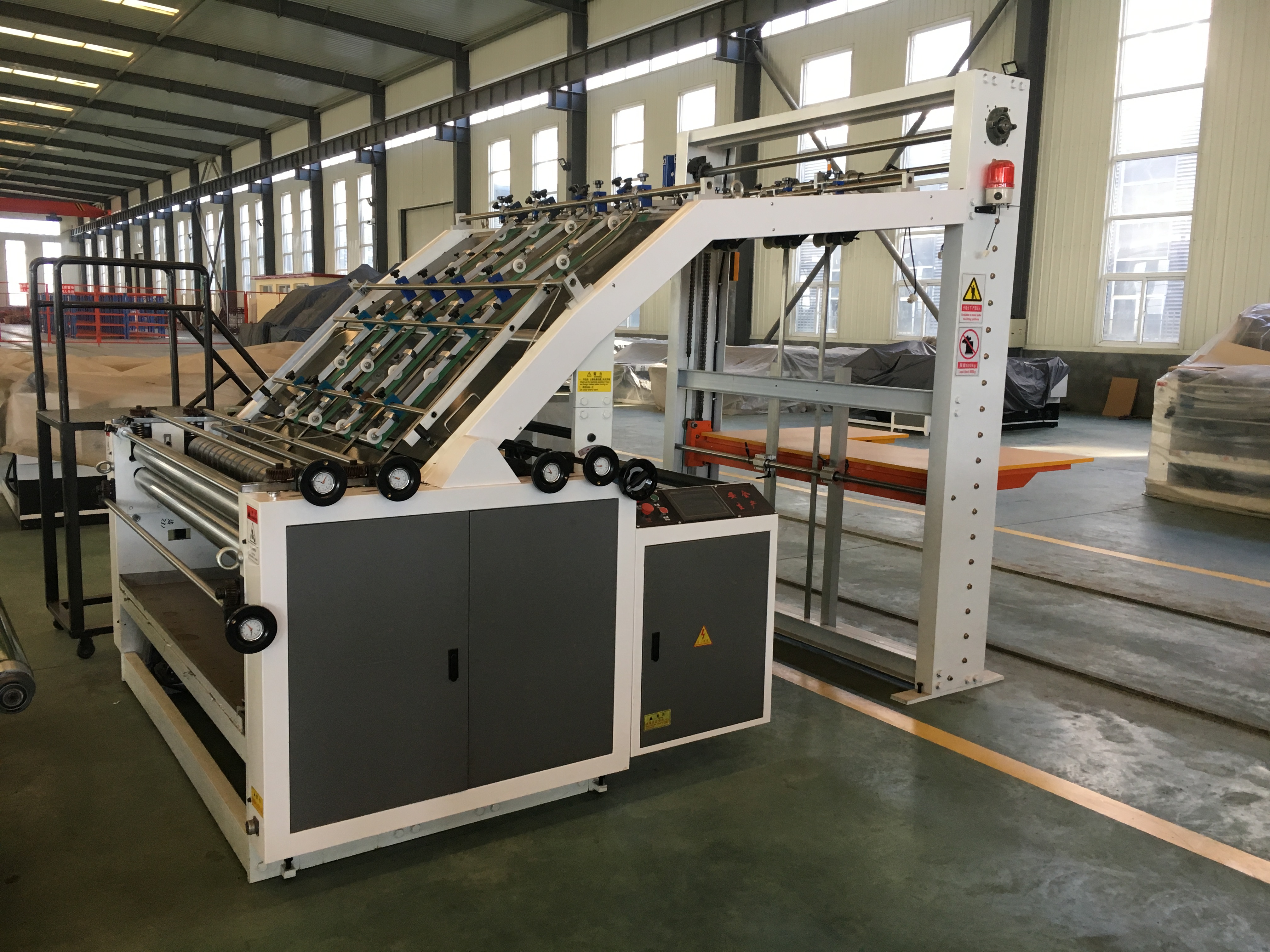

1. The top paper can pile up the height of 1m once time ,it makes delivery more easier and efficient

2. Adopt PLC & Taiwan servo motor control system, working is more precision and stable,improved the speed, circuit faults can automatically alarm.

3. Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking

4. Entire new concept,front gauge registration, position high accuracy, bottom sheet never exceedes the top sheet.

5. Machine uses touch-screen / PLC control system, the circuit system is stable, and can automatically display the failure alarm

6. The automatic replenishment system of glue can be added automatically during glue losses, and recycling with the glue to avoid loss of waste;

7. The scientific design of the metering roller speed to ensure the glue evently on the same time, to avoid rejection of glue at high speed.

8. Using the rubber roller cleaning to make cleaning thoroughly, and so that the back of the corrugated cardboard never gets glue, and eliminating the trouble of frequent replacement of blade.

9. Floating removable press, to ensure that laminated paper will not be crushed, and also keep the cardboard smooth and straight; unilateral adjustment by way of adjustment worm roll lamination pressure for quick

10. Control of water tank cleaning cycle using an independent method, clean, hard rubber product;

11.Suitable for color top sheet 175-500g and A/B/C/D/E/F corrugated paper laminating;

Technological parameter:

Model

HRBTMJ-1300H-II

HRBTMJ-1500H-II

HRBTMJ-1600H-II

Max size of cover face

1300mmX1100mm

1500mmX1250mm

1600mmX1250mm

Mix size of cover face

360mmX360mm

360mmX360mm

360mmX360mm

Economic speed

0-100 piece/min

0-100 piece/min

0-100 piece/min

Precision

±1

±1

±1

Power

7kw

7kw

7kw

Size

10m x 2m x 2.2m

10m x 2.2m x 2.2m

8.8m x 2.3m x 2.2m

Weight

About 3.5T

About 4.0T

About 4.0T
