Economic A B C E F flute paper to cardboard Semi Automatic Flute Laminator for Two sheet pasting Flute laminator machine

Economic A B C E F flute paper to cardboard Semi Automatic Flute Laminator for Two sheet pasting can promote the further development of enterprises, open up new markets, stand out in the fierce competition environment, and become the leader in the industry.The widespread use in Packaging Line of the product helps it win a lot of attention in the market.
In Stock
Send Inquiry
SKU: OG-796073

Economic A B C E F flute paper to cardboard Semi Automatic Flute Laminator for Two sheet pasting companies spend so much time coming up with various products to reach diverse consumer needs. Compared with other similar hebei products in the market, Corrugated paperboard production line,Flexo printer slotter die-cutter machine,Single facer machine,corrugated carton machine it can be very stable and long-lasting when applied in the field(s) of Packaging Line. Cangzhou Ouguan Packing Machinery Co.,Ltd have always advocated the customer-centric business concept, aiming to provide customers with specialized, standardized, and diversified services. We focus on technology development and hope to make some innovations backed by strong technical strength.

Type:Packaging Line, AutomticApplicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:United Kingdom, Brazil, Peru, Indonesia, India, Mexico, Thailand, Chile, Bangladesh, South Africa, Kazakhstan, Ukraine, UzbekistanCondition:New
Application:Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco, Packing IndustryPackaging Type:Film
Packaging Material:Plastic, WoodAutomatic Grade:Automatic
Driven Type:ElectricPlace of Origin:hebei
Brand Name:OuguanDimension(L*W*H):depends one machine
Weight:2000 KGWarranty:1 Year, 12 Months
Key Selling Points:Easy to OperateMarketing Type:New Product 2021
Machinery Test Report:ProvidedVideo outgoing-inspection:Provided
Warranty of core components:1 YearCore Components:Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox
Name:Semi Automatic Flute Laminator for Two sheet pastingColor:Customer's Requirements
Suitable for:cardboardControl:PLC+Touch Screen
Speed:80-250 Pcs/minFinished Products:corrugated cardboard
Certification:CE

Product Description

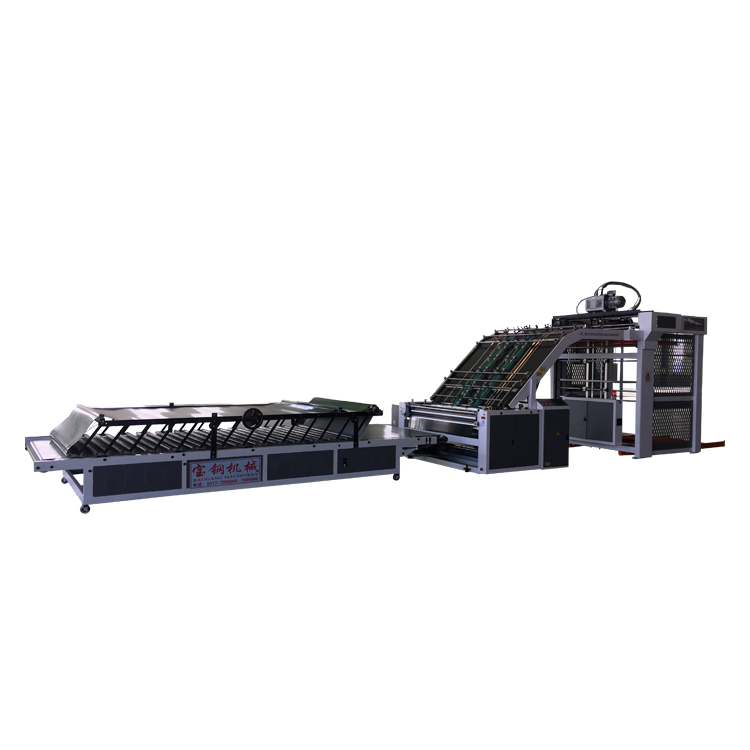

                      Semi Automatic Flute Laminator for Two sheet pasting



Economic A B C E F flute paper to cardboard Semi Automatic Flute Laminator for Two sheet pasting

Model   BZD1300 BZD1450 BZD1600
Max Sheet size mm 1300×1100 1450×1100 1600×1100
Min Sheet size  mm 350×450 350×450 350×450
Speed m/min 50 50 50
Total electric consumption kw 6.4 6.4 6.4
Overall Dimensions mm 8800×1980×1250 8800×2130×1250 8800×2280×1250
Total weight T 4.5 4.8 5

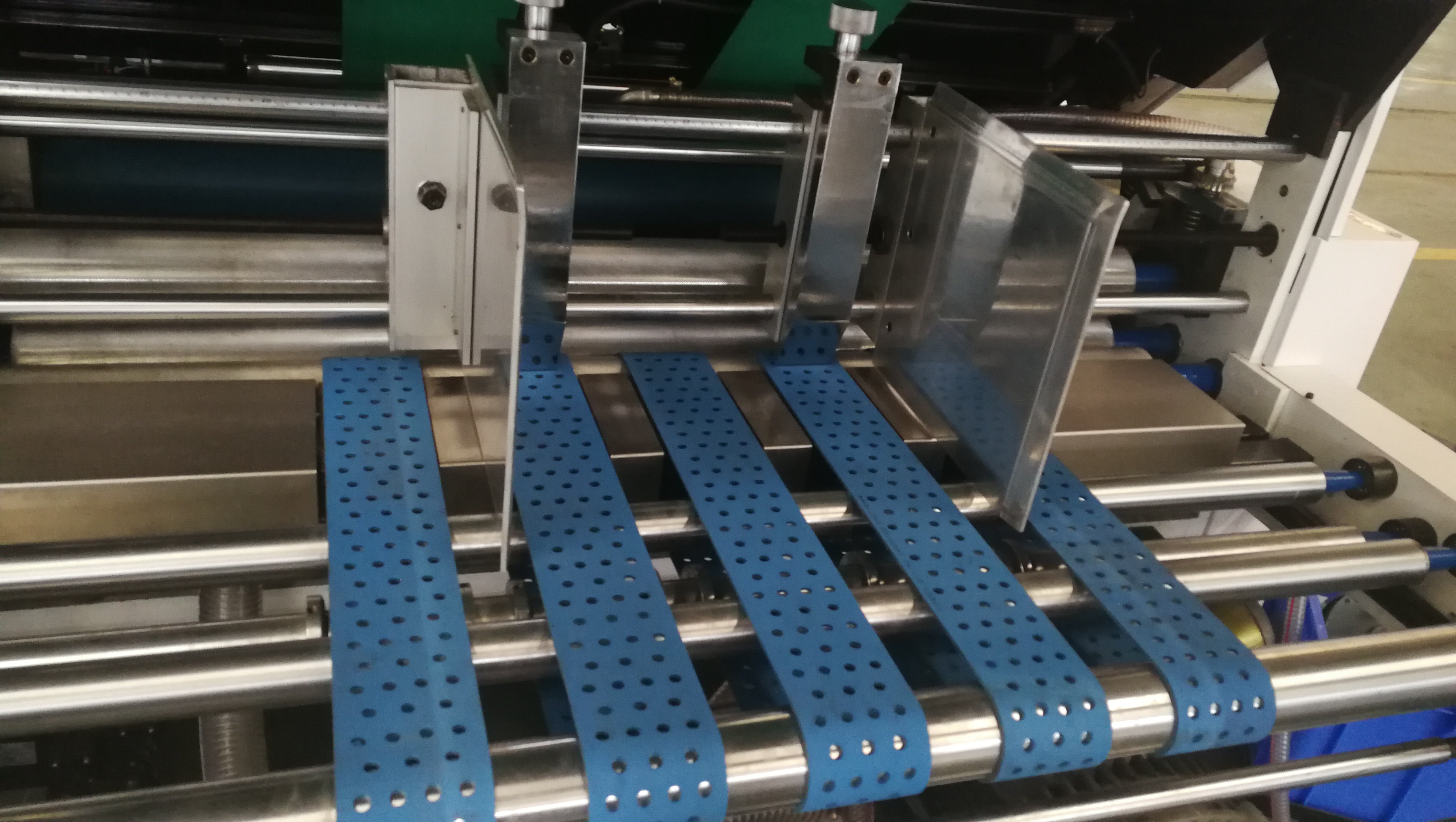

BZJ-D series semi-automatic flute laminating machine is the latest development model based on our company's A series semi-automatic laminating machine. The difference between the two is the paper feeding method of the corrugated paper. The BZJ-A series is a manual continuous paper feeding, and then the rubberizing process is completed after pushing the claws, while the BZJ-D model is manually placed on the paper feeding table. A stack of paper consisting of several corrugated papers is placed thereon, and then automatically fed into the rubberized roller by the adsorption of the vacuum blower. This model reduces the labor intensity of the paper feeding staff and improves the efficiency of the paper machine.



Packaging & Shipping

 Economic A B C E F flute paper to cardboard Semi Automatic Flute Laminator for Two sheet pasting

Company Information

 Economic A B C E F flute paper to cardboard Semi Automatic Flute Laminator for Two sheet pasting
