One stop solution for your corrugated carton box

Good quality 2800 model automatic single piece folding gluing machine folder gluer machine

The latest technology improves the quality of Good quality 2800 model automatic single piece folding gluing machine.So the product has already been used in a wide variety of applications like Gluing Machines.
In Stock
Send Inquiry
SKU: OG-796018

Various sizes of Good quality 2800 model automatic single piece folding gluing machine are available for clients. Technology is the core competitiveness of a company. Since established, we have been researching and developing high-level technologies to make sure highly efficient manufacturing process.It covers a wide range and is commonly seen in the application field(s) of Gluing Machines. Cangzhou Ouguan Packing Machinery Co.,Ltd will always stick to the business principle of 'quality first, customers foremost' and strive towards building an even more competitive and capable company aiming for an even better future.

Type:Gluing MachineApplicable Industries:Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Showroom Location:Egypt, Canada, Turkey, Germany, Viet Nam, Brazil, Saudi Arabia, India, Mexico, Thailand, South Korea, Colombia, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, MalaysiaVideo outgoing-inspection:Provided
Machinery Test Report:ProvidedMarketing Type:New Product 2022
Warranty of core components:1 YearCore Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:NewApplication:Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL
Packaging Type:Cartons, FilmPackaging Material:Plastic, Wood
Automatic Grade:Semi-automaticDriven Type:Electric
Voltage:440V, 220-440VPlace of Origin:Hebei province
Brand Name:OuguanDimension(L*W*H):2200*2400*1300mm
Weight:2000 KGWarranty:1 Year, 12 Months
Key Selling Points:Easy to OperateName:2800 model automatic single piece folding gluing machine
Control:PLC+Touch ScreenFunction:Gluer
Packing material:FilmPacking speed:100-200pcs/min
Key Word:Automatic Gluer MachineUsage:Corrugated Cardboard
Certification:CE

Product Description

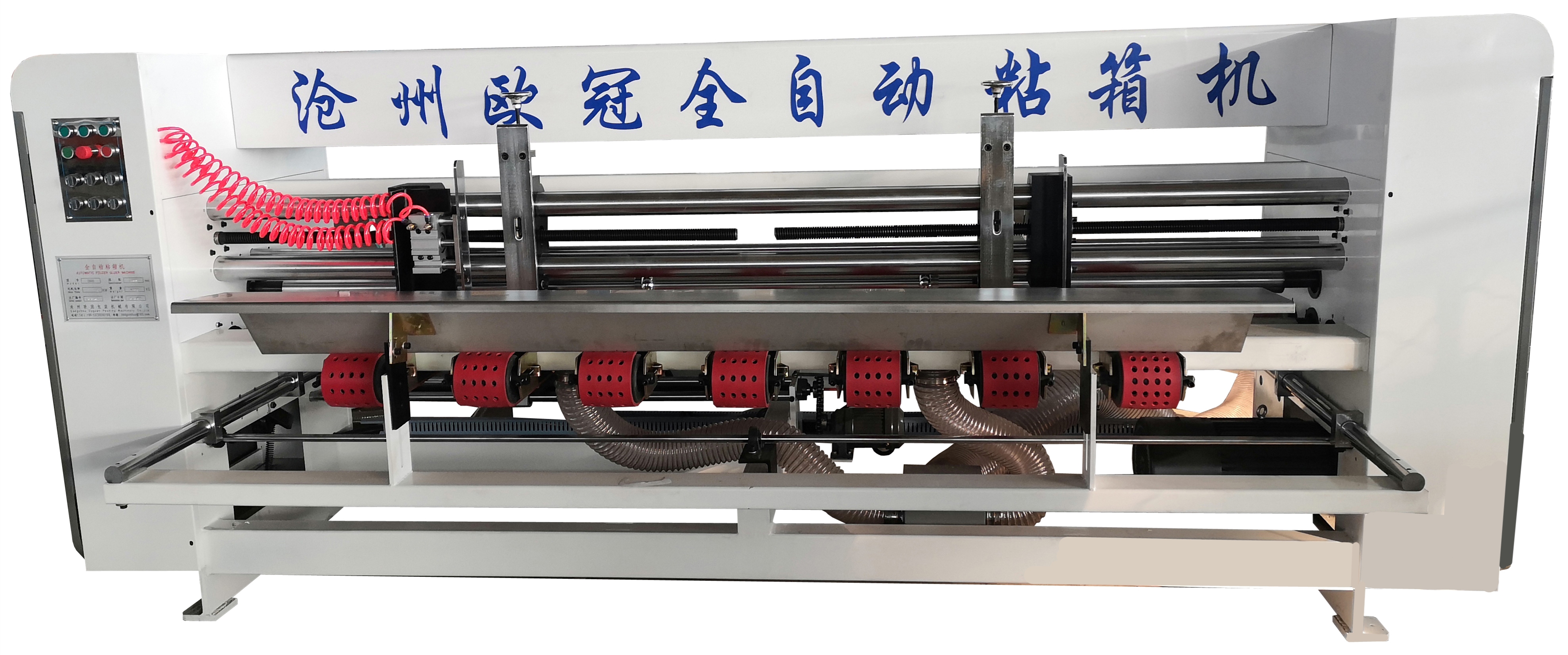

2800 model automatic single piece folding gluing machine



Good quality 2800 model automatic single piece folding gluing machine

Good quality 2800 model automatic single piece folding gluing machine



This machine is the last equipment of the carton molding,is applicated to the corrugated cardboard’s combination of the three layers or five layers with different sizes(If need gluing seven layer, can be customized processing)This machine is in high efficiency and the cardboard is beautiful.The most beneficial is that binder costs less,the costs are 10 times less than the stitching ribbonfil.It is strong adhesion,easy operation and smooth operation which is ideal equipment of exporting advanced cardboard processing.



technical parameters

                        Max size (L+W)*2

2460mm

 MIN size (L+W)*2

                          340mm

                        Max size (W+H)

1515mm

 Min size (W+H)

                          260mm

               Height of Feeder

                          900mm

                               Power

4KW

                  Length

                         4500mm

Width

                          2100mm

                   Weight

                          2150Kg

             Speed(piece/min)

                  40--60piece/min

 Shape size(L*W*H)(mm)

                 4300*2000*1700mm



Packaging & Shipping

 Good quality 2800 model automatic single piece folding gluing machine



Company Information

 Good quality 2800 model automatic single piece folding gluing machine
