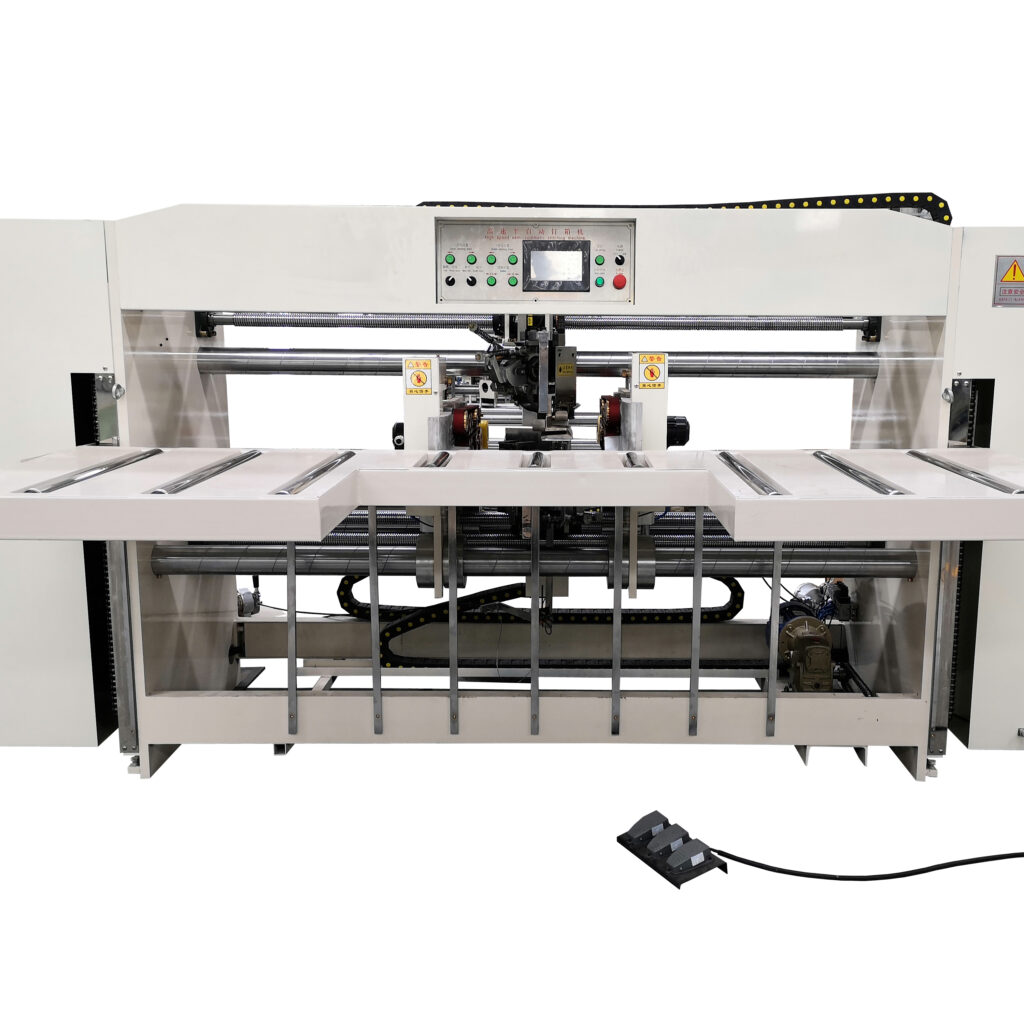

corrugated cardboard stitching machine for corrugated cardboard box making machine stitching/nail machine

Cangzhou Ouguan Packing Machinery Co.,Ltd has become a recognized leader in the Paper Product Making Machinery industry with its high-quality product and excellent service. Paper Product Making Machinery has won high attention and praise from the industry and market. Cangzhou Ouguan Packing Machinery Co.,Ltd will fully act on the important thought of the 'quality first and customer foremost' and keep pace with the times to promote the innovation capabilities of our company. We will forge valiantly ahead and achieve our goal of being the leading enterprise in the global market.

Company Information



Main partr and function introduction :

1. Schneiderfrance original import four servo motor drive ,high precise with few mechnical driving part ,reduce the machine damage
2.wenlun touch screen ooperation the parameter ( nail distance, nail unmber,nail types,tial gate ) change convinently
3 The whole machine control system use the omron plc control system
4..back electrical baffle use the stepper motor driven ,size accurate ,size changing is more convinent
5.The contactor in the control box adopt simense brand
5 .Display and circuit breaker adopt schneider ,pohto electric switch and proximity switch adopt omron branch .
6.Bottom mould and blade adopt japan tungsten steel
7.Whole stiching head adopt special steel to make , computer digital processed
8Machine have single nail / ,double nail//, strenght nail // / / / //
9 Change the size only need one minute to finish,same as changing the stiching distance
10.Can stich box with lid or box no lid ( when customer need the stiching no lid box must special order )



Max size (A+B)X2	3600mm	min length A	250 mm
Min size A+B)X2	740mm	Max height D	2000 mm
Max size (C+D+C)	3000mm	Min height D	150 mm
Min size (C+D+C)	250mm	Max flay size E	40 mm
Min cover size C	50mm	Max paper heigh	900 mm
Max cover size C	560 mm	Machine width	2850 mm
Max width size B	760 mm	Machine weight(T)	2tons
Min width size B	120 mm	Machine speed (nail/min)	500
Max length A	1120 mm	Nail no.	1-99
