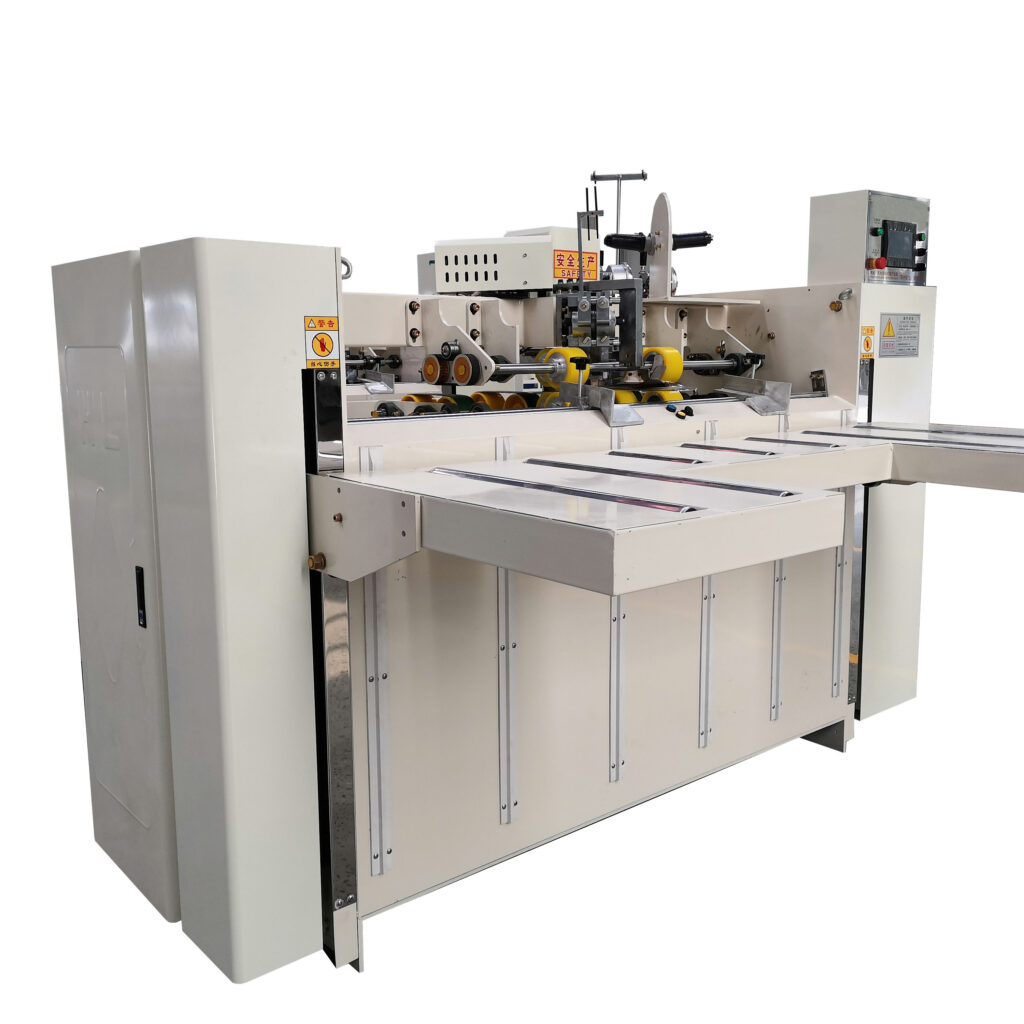

semi-automatic corrugated cardboard stitching machine for Corrugated box Making Machine stitching/nail machine

The product is made by technologies, some of which are developed on our own while others are learned from other famous brands.In the fields like Paper Product Making Machinery, our product is widely used for its versatility and guaranteed quality. After semi-automatic corrugated cardboard stitching machine for Corrugated box Making Machine launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. In aspect of the product design, our design team always pays close attention to the customers' taste and industry trends. Thanks to this, our semi-automatic corrugated cardboard stitching machine for Corrugated box Making Machine can fully attract people's attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.

Company Information



Main partr and function introduction :

1. Schneiderfrance original import four servo motor drive ,high precise with few mechnical driving part ,reduce the machine damage
2.wenlun touch screen ooperation the parameter ( nail distance, nail unmber,nail types,tial gate ) change convinently
3 The whole machine control system use the omron plc control system
4..back electrical baffle use the stepper motor driven ,size accurate ,size changing is more convinent
5.The contactor in the control box adopt simense brand
5 .Display and circuit breaker adopt schneider ,pohto electric switch and proximity switch adopt omron branch .
6.Bottom mould and blade adopt japan tungsten steel
7.Whole stiching head adopt special steel to make , computer digital processed
8Machine have single nail / ,double nail//, strenght nail // / / / //
9 Change the size only need one minute to finish,same as changing the stiching distance
10.Can stich box with lid or box no lid ( when customer need the stiching no lid box must special order )



Max size (A+B)X2	3600mm	min length A	250 mm
Min size A+B)X2	740mm	Max height D	2000 mm
Max size (C+D+C)	3000mm	Min height D	150 mm
Min size (C+D+C)	250mm	Max flay size E	40 mm
Min cover size C	50mm	Max paper heigh	900 mm
Max cover size C	560 mm	Machine width	2850 mm
Max width size B	760 mm	Machine weight(T)	2tons
Min width size B	120 mm	Machine speed (nail/min)	500
Max length A	1120 mm	Nail no.	1-99
